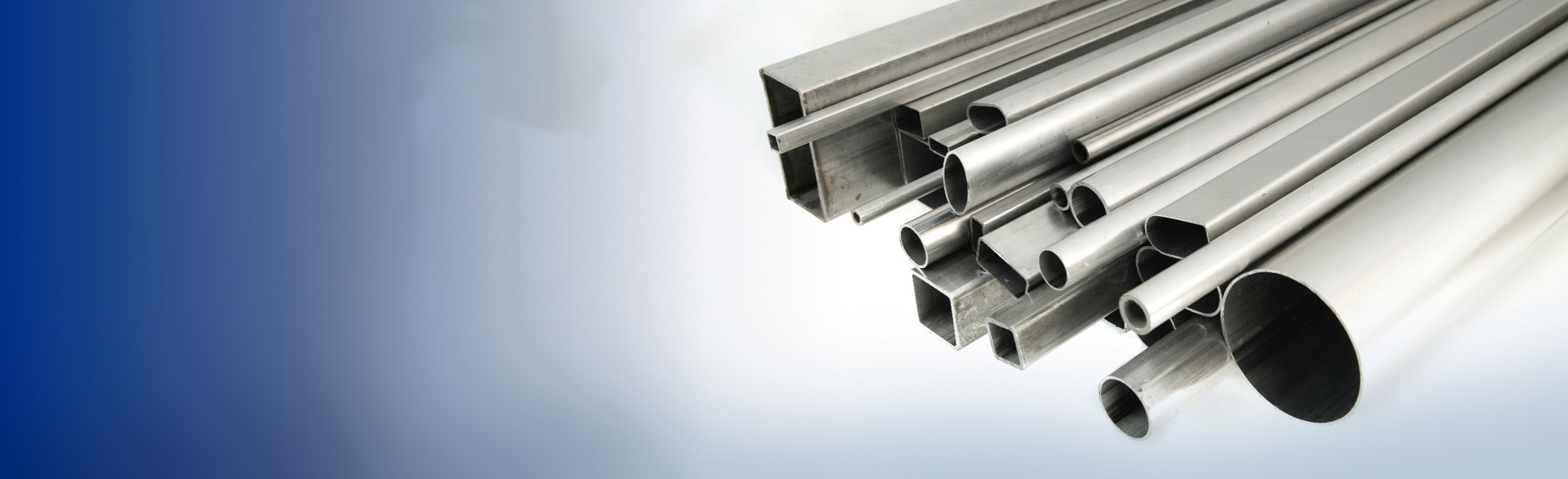

ERW Precision Tubes

Our ERW (Electric Resistance Welded) tubes are customized to fulfill precise customer specifications. These tubes exhibit uniform dimensions and exceptional strength, rendering them suitable for a diverse range of industries. Available in various sizes and shapes, they present a cost-effective solution for numerous applications.

Utilizing raw materials of the highest quality, we guarantee that each tube delivers dependable performance and meets the stringent demands of industries that require consistent and reliable outcomes.

Technical Specifications

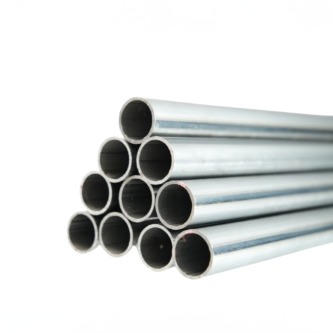

Sizes & Thickness

9.5 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40

10 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50

12.70 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00

14.29 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00

15.88 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

17.25 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

18 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

19.05 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

20 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

21.90 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

22.23 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

25 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

25.40 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

28.58 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

30 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

31.75 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

33.70 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

34 MM (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

34.93 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

38.10 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50 | 4.00

38.10 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50 | 4.00

41.28 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

42.30 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50 | 4.00

42.70 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

44.45 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

48.30 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

50 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

50.80 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

54 MM (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

57.15 MM (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

60 MM (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

63.50 MM (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

76.20 MM (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

81.28 MM (Sizes)

Thickness :

1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

88.90 MM (Sizes)

Thickness :

1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20 | 3.50

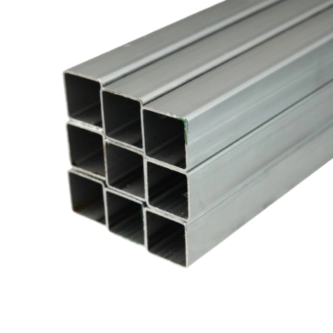

Sizes & Thickness

12 X 12 SQ (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00

15 X 15 SQ (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00

19 X 19 SQ (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

20 X 20 SQ (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

25 X 25 SQ (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

30 X 30 SQ (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

38 X 38 SQ (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

40 X 40 SQ (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

50 X 50 SQ (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

60 X 60 SQ (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

72 X 72 SQ (Sizes)

Thickness :

1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

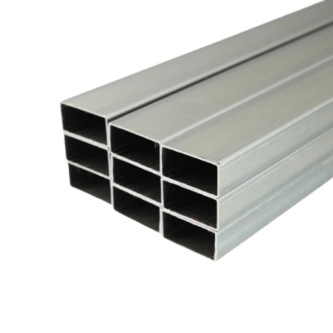

Sizes & Thickness

20 X 10 RECT (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00

25 X 12 RECT (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

30 X 10 RECT (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30

26.5 X 13.5 RECT (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

28 X 15 RECT (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

30 X 15 RECT (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

30 x 20 RECT (Sizes)

Thickness :

0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

31.75 x 19.05 RECT (Sizes)

Thickness :

0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

35 x 15 RECT (Sizes)

Thickness :

0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

40 x 20 RECT (Sizes)

Thickness :

0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00

38 X 25 RECT (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

40 x 25 RECT (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

40 x 30 RECT (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

50 x 20 RECT (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

50 x 25 RECT (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

30 x 50 RECT (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

60 x 30 RECT (Sizes)

Thickness :

1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

60 x 40 RECT (Sizes)

Thickness :

1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

70 x 30 RECT (Sizes)

Thickness :

1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

75 x 25 RECT (Sizes)

Thickness :

1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

80 x 40 RECT (Sizes)

Thickness :

1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

48 x 92 RECT (Sizes)

Thickness :

1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

96 x 48 RECT (Sizes)

Thickness :

1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

100 x 50 RECT (Sizes)

Thickness :

1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

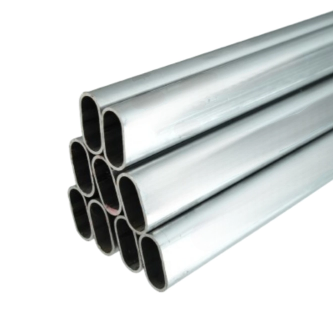

Sizes & Thickness

30 x 15 OVAL (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00

30 x 16 OVAL (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00

33 x 13 OVAL (Sizes)

Thickness :

0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

35 x 15 OVAL (Sizes)

Thickness :

0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

24 X 35 OVAL (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

40 x 16 OVAL (Sizes)

Thickness :

0.70 | 0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

40 x 20 OVAL (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

40 x 22 OVAL (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

50 x 33 OVAL (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

33 x 43 OVAL (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

59 x 30 OVAL (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

59 x 30 OVAL (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

70 x 30 OVAL (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

77 x 37 OVAL (Sizes)

Thickness :

0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00 | 3.20

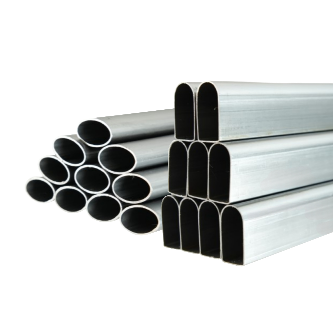

Sizes & Thickness

40 X 22 ELIP (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

50 X 28 ELIP (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50

43 X 22 'D' SHAP (Sizes)

Thickness :

0.80 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.60 | 1.80 | 1.90 | 2.00 | 2.30 | 2.50 | 2.80 | 3.00

Applications

Auto Ancillary Products

Auto Ancillary Products

Automotive

Automotive

Fitness Equipment

Fitness Equipment

General Engineering and Fabrication

General Engineering and Fabrication

Home Appliances

Home Appliances

Hospital Furniture

Hospital Furniture

Infrastructure

Infrastructure

Pollution Control Items

Pollution Control Items

Poultry Farming Equipment

Poultry Farming Equipment

Power

Power

Railways

Railways

Road Transportation

Road Transportation

Storage Solutions

Storage Solutions

Structural Tubes

Structural Tubes

Telecom

Telecom
